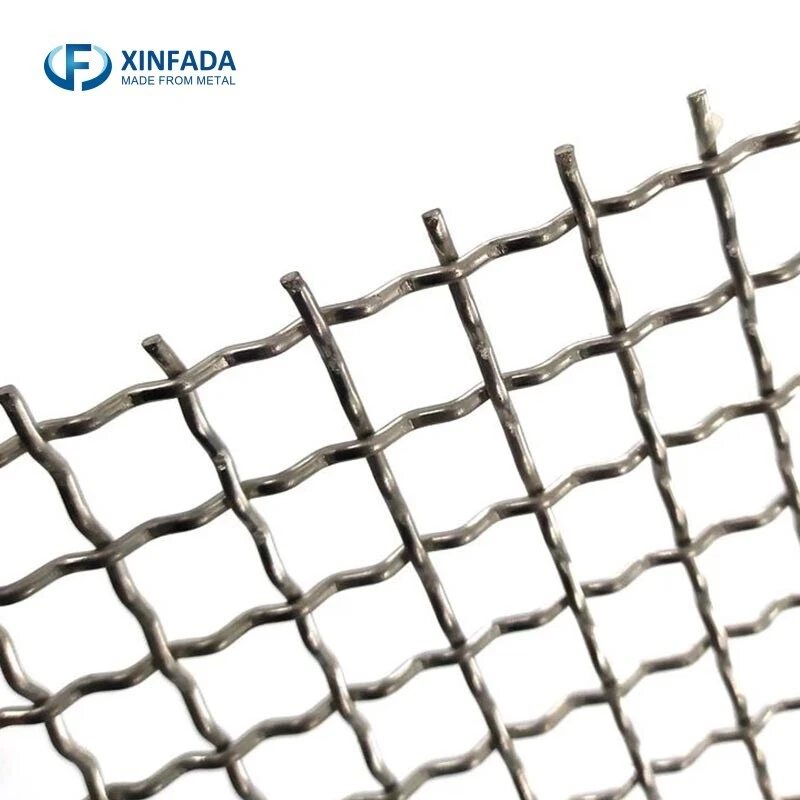

Stainless Steel Crimped Wire Mesh

+86 15763515130

admin@xfdsteelproduct.com

+86 157 6351 5130
Contact us
Product Description

Stainless Steel Woven Mesh is made by stainless steel wire and then woven together to form a square opening or oblong opening. Stainless steel woven wire mesh has characteristics of resistance to the rust, corrosion, acid, alkali, heat and chemical, high strength and durability. Stainless steel woven wire cloth has widely applications in the industries, architecture, residences and other places


Stainless Steel Woven Mesh For Sale

ProductStainless Steel Woven Mesh
Raw MaterialSS 201,304,304L, 316,316L, 430,ect stainless steel wire
Diameter0.0008″-0.12″
Mesh2-635mesh
Open Area25-84.6
Roll WidthMax 240″
Roll LengthMax 2000′
ApplicationFilters ,sieve,chemical industry, mine industry, etc
PackagingInner kraft paper, outside plastic cloth, put into wooden pallet or case


Specification sheet of the plain weave woven wire cloth
Mesh/InchAbsolute micron retention (μm)Weight (kg/m2)Cloth Thickness (mm)
80 × 30032 - 360.980.25
80 × 40036 - 450.820.23
50 × 25056 - 6310.32
50 × 28071 - 7510.32
40 × 20075 - 801.30.4
30 × 15080 - 10010.5
24 × 110100 - 1122.50.76
22 × 140140 - 1702.10.66
20 × 150160 - 1801.550.5
20 × 150170 - 1901.60.55
18 × 100200 - 2102.050.69
14 × 110220 - 2402.150.72
12 × 95240 - 2602.30.79
14 × 88280 - 3003.150.76
10 × 90270 - 2902.50.93
12 × 64280 - 3004.11.21
10 × 70315 - 33531.04
8 × 85330 - 3502.50.93


Specification of the twill weave stainless steel wire cloth.
Mesh/InchAbsolute micron retention (μm)Weight (kg/m2)Cloth Thickness (mm)
510 × 36004-50.30.06
400 × 28005-60.360.06
375 × 23006-70.390.08
325 × 23007-80.470.09
260 × 15508-100.680.12
250 × 140011-120.680.12
200 × 140011-130.750.14
130 × 70013 - 151.60.28
200 × 112015 - 170.950.16
165 × 140015 - 180.70.15
165 × 110020 - 210.90.16
80 × 70034 - 361.20.26
40 × 56071 - 801.70.39
30 × 36095 - 1062.60.54
30 × 250100 - 1123.20.65
20 × 260110 - 1203.10.67
28 × 560106 - 1121.950.46
24 × 300112 - 1182.850.63

Note: Special size and specification can be customized.

Product Display

不锈钢轧花网产品展示jpg


Certificate



Packaging and shipping


FAQ

Q：What is the raw material for wire mesh?

A： The mesh we produce is made of high-quality stainless steel, carbon steel wires or galvanized steel wires. Also can be customized according to your needs.

Q：What opening designs are available for wire mesh?

A： There are square, rectangular, hexagonal, and diamond-shaped wire meshes for sale. You can choose according to your preference and use purpose.

Q：Do you provide samples?

A： Of course. We can provide samples. But you need to pay for the freight charge.

Q：What’s your MOQ?

A： According to your needs. Any quantity can be shipped. We are a wholesale supplier and we offer a cheap price. But considering the shipping cost, bulk orders will be more cost-effective.

Q：How long does it take for an order to be shipped?

A： Generally, 7-20 days. It mainly depends on the quantity and specifications of your order. It will take longer for custom products.

Q：Do you have inspection for the products before packing?

A： All products have to go through three checks In the whole manufacturing process,it Includes production and Random Testing in warehouse and Before Shipping. and accept the third party.

NOTE

Thank you for choosing Xinfada Metal. We are able to provide customized services according to product materials and packaging types. We try our best to meet your personalized needs.
At the same time, if you purchase in large quantities, we will give you a more favorable discount price. If you are interested in purchasing wire mesh, please contact us immediately for a quote. We will reply you as soon as possible.
